Application Scenarios
Factory and commercial wastewater pollution; Urban sewage treatment plant; Civil air defense system drainage station; Municipal engine- ering; Rural biogas digesters, farmland irrigation, and dredging of rivers and ponds.
Scope of Application
The medium temperature does not exceed 60 ��, the exposed liquid level of the motor part does not exceed 1/2, the medium density is 1-1.3kg/dm3, and there is no internal self circulation cooling system for the pump. The use range of cast iron material is PH5-9, and stainless steel mater- ial is selected for corrosive media.
Technical Characteristics
The use of an open large channel impeller and anti clogging and tearing mechanism enables the water pump to have excellent overcurrent performance, and can pass fiber like pollutants with a length exceeding 5 times the diameter; Using tungsten carbide material double end mechanical seal to operate in the oil chamber, the pump can run continuously for 8000 hours;
Product Catalog

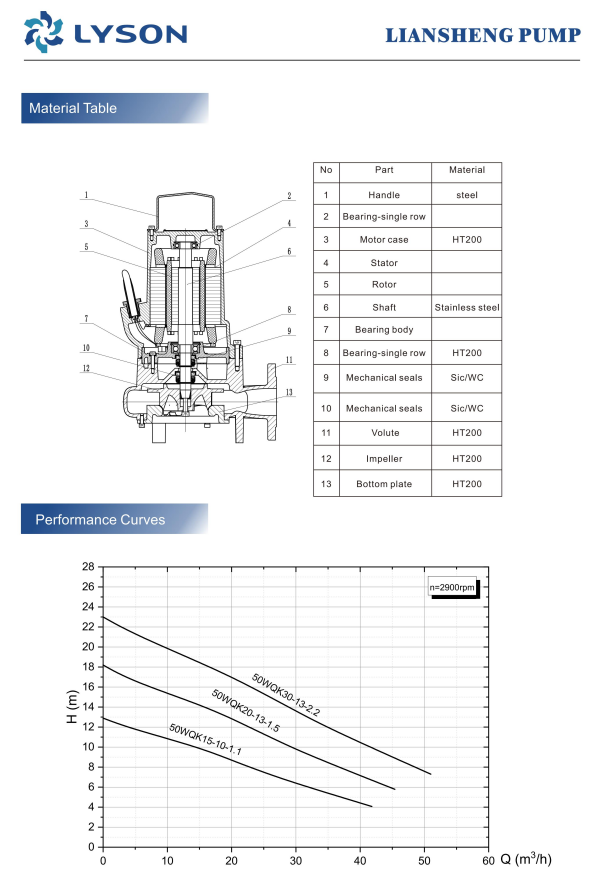

WQK submersible sewage pump
The medium temperature does not exceed 60 ℃, the exposed liquid level of the motor part does not exceed 1/2, the medium density is 1-1.3kg/dm3, and there is no internal self circulation cooling system for the pump. The use range of cast iron material is PH5-9, and stainless steel mater- ial is selected for corrosive media.
